OEM ODM Krone Compatible Grounding Module 10 Pair Disconnection Module IDC Telecom MDF Distribution

Brand Name : ANSHI

Model Number : XL-011

Certification : ISO9001, CNACL, SGS, DAS

Place of Origin : ZHEJIANG, CHINA

MOQ : 100 PCS

Price : $2.5~$4.5

Supply Ability : 10000 pcs per week

Packaging Details : CARTON:53*24*24CM

Color : Red+Grey

Application : Telecommunication

Package : 10 pieces / inner box

Type : Earth Module

Contact : Phosphor bronze with silver coating

Material : ABS or PBT

Contact Now

OEM ODM Krone Compatible Grounding Module 10 Pair Disconnection Module IDC Telecom MDF Distribution
Profile Tube Installation
Product Description

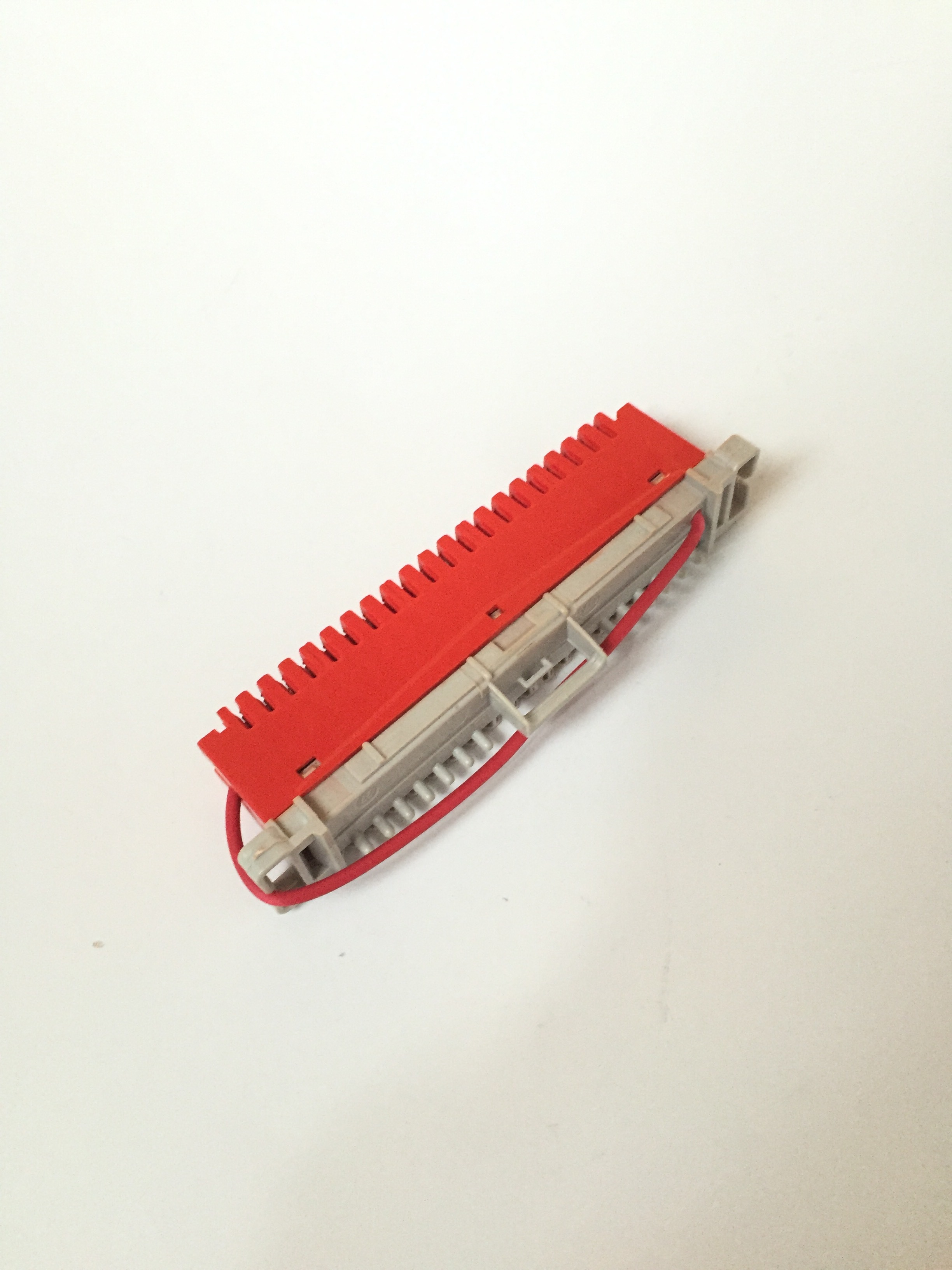

10 Pairs Earth Module (Red) With Grounding Wire

Quick Detail
  • Material: PBT or ABS(UL94V-0)
  • Contact: Phosphor Bronze
  • Can be installed on krone type stainless steel back mount frames
  • Available with 50pair block tag and 100pair block tag
  • For mounting on MDF, racks, profile bracket, indoor and outdoor distribution box, cross connection cabinets
Specification
  • Environment condition: -5-40°C Relative humidity <85% (+30°C) Atmospheric pressure: 70-106KPa
  • Compatible with KRONE LSA-PLUS modules with airtight contacting design for reliable connections
  • Size (H × W × D): 75mm × 21.5mm × 40.5mm (5 Pairs)
  • Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
  • Internal diameter of connection wire: 0.4-0.6 mm
  • Anti-burn performance: PBT UL94V-0 or anti-burn ABS UL94V-0
  • Insulated resistance: ≥1,000M ohm between disjunct connections
  • Intermediate resistance between reed terminators: ≤7m ohm
  • Intermediate resistance: ≤3m ohm under standard conditions
  • Dielectric strength: meets industry standard
  • Type: disconnection type
  • Life: durability 200 cycles
Applications

High speed LAN and WAN systems, used to connect Telecom and Data wires with punch down tools.

Technical Specifications
Mechanical Performance
Insertion force 40~75N
Pull Out Force F≥25N(axial) F≥7.5N(radial)
IDC Life 200 times(20-26 AWG Solid wire) minimum
Copper Conductor Diameter Φ0.4~Φ0.8(mm)
Environment Characteristic
Storage Temperature -40 to 70°C
Operating Temperature -10 to 60°C
Relative Humidity 95%, non-condensing
Electrical Performance
Insulation resistance 1000 Mohms minimum
Contact resistance 7 mohms maximum
Dielectric intensity AC 1000 Vrms 50Hz or 60Hz in 60s
Have Back Mount Type For Choice

OEM ODM Krone Compatible Grounding Module 10 Pair Disconnection Module IDC Telecom MDF Distribution

OEM ODM Krone Compatible Grounding Module 10 Pair Disconnection Module IDC Telecom MDF Distribution

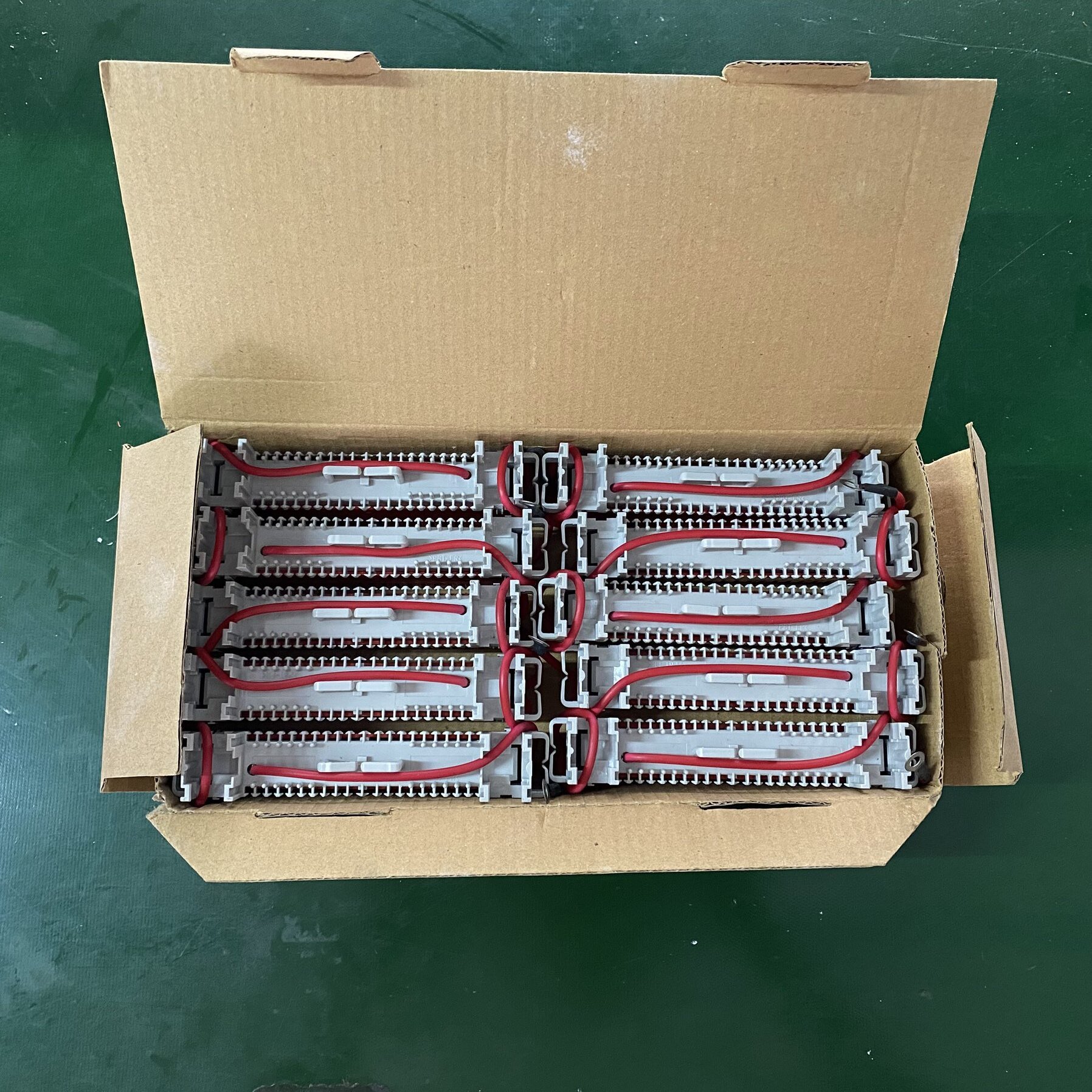

Package

Why Choose Us
  • 40 years manufacturing experience
  • OEM/ODM available
  • Steady product quality
  • Strict quality control
  • Complies with CE, ROHS, UL certificates
  • Quick delivery time
