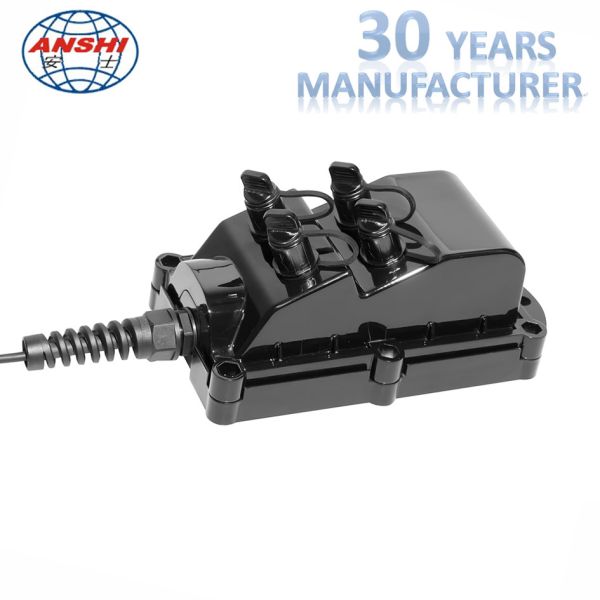

Mini Sc Ptlc Odva Armoured Ftth Fiber Optic Termination Box

Name: Mini Sc Ptlc Odva Armoured Ftth Fiber Optic Termination Box
Brand: ANSHI
Price: 1 USD

Quality Mini Sc Ptlc Odva Armoured Ftth Fiber Optic Termination Box for sale

Adapter Port type : MINI SC,H connector (Optitap),MINI IPMPO,ODVA

material : Plastic

name : Optical Fiber Distribution Box

Fire Retardant : UL 94V-0

Application : FTTX Enclosure box

Cable Strength Member : Armoured or Non-armoured

No. of Fusion : Max 24 pcs

Brand Name : ANSHI

Model Number : AS-ODF-FDB-ODVA-4P

Certification : ISO9001, SGS

Place of Origin : China

MOQ : 50

Price : Negotiable

Delivery Time : 10000pcs/week

Contact Now

Fiber Optical ODLC/ODC/Fullax/ODVA/Mini SC/Waterproof Multifunction Box Fiber Optic Terminal Box

Product Description

FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

Applications

FTTH field
FTTA field
Trunk cable connecting
Prospecting or communication

Features

High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
Factory-sealed or field assembly.
IP68 water and dust protection
Strong enough: working under 1200N pulling force long term.
From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice sleeve for fiber divide .
IP68 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Meet IEC 61753-1 standard.
Cost effective: save 40% operating time.

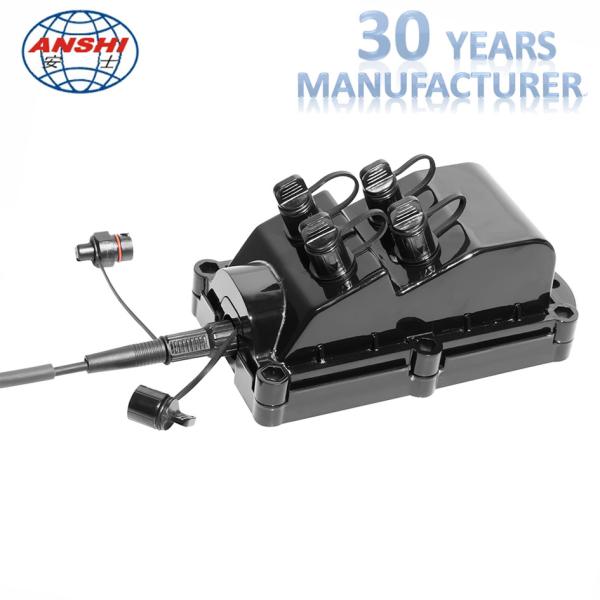

Mini Sc Ptlc Odva Armoured Ftth Fiber Optic Termination Box

Configuration

Configuration
	Standard	Optional
Input Hole	PG13.5	MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Output Hole	MINI SC,H connector	MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Extend Hole	Closed	MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
